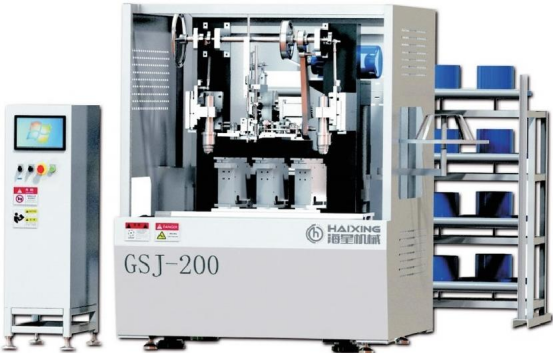

Machine features
Steel wire brush machine is a unique innovative design of the machine,including a number of
invention patents,among which the new style tufting head technology with a new type of work
table to make the machine more superb performance,to meet the mass production of all kinds of steel wire brush,can bring better benefits to users.
1.Man-machine touch screen control system,flexible and convenient operation
2.Equipped with 2 drillheads and 1 tufting head to produce various brushes
3.Tufting Method:Round wire
4.Allow 1,000 different brush programs to be stored,and it's easy to create a new one
5.The needle,take hair knife and allparts on the machine are of standardized design, replacement and maintenance are very convenient
6.Optional different platforms can produce different types of angles of brush
|
Model |
GSJ-200 |
|
Axis |
4 |
|
Drilling(pcs) |
2 |
|
Tufting(pcs) |
1 |
|
Stations |
3 |
|
Speed(tufts/min) |
≤250 |
|
Stroke(mm) |
35 |
|
Filament length(mm) |
45-75 |
|
Hole diameter(mm) |
3.0-6.0 |
|
power consumption(kw) |
3 |
|
Air pressure(Mpa) |
0.6-0.8 |
|
voltage (V.Hz) |
380V.50Hz |
|
Weight(Kg) |
1700 |
|
Dimensions(mm) |
MAIN-L-2000xW-1700xH-2080 EBOX-L-370xW-670xH-1340 |
Q 1: Is your company a factory or trade company?
A: We are a factory, we are engaged in this business for more than 30 years, we also have our own trade company in charge of overseas & domestic marketing affairs.
Q 2:Do you have any certification?
A: SGS, CE, ISO, etc.
Q 3: Can you guarantee your quality?
A: Of course. We are a large scale professional factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely. We can make business by Trade Assurance on Alibaba,com.
Q 4: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that you prefer more convenient payment term such as T/T, L/C, Western Union,
etc.
Q 5: How about after-sales service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer spare parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q 6: How to reach our factory?

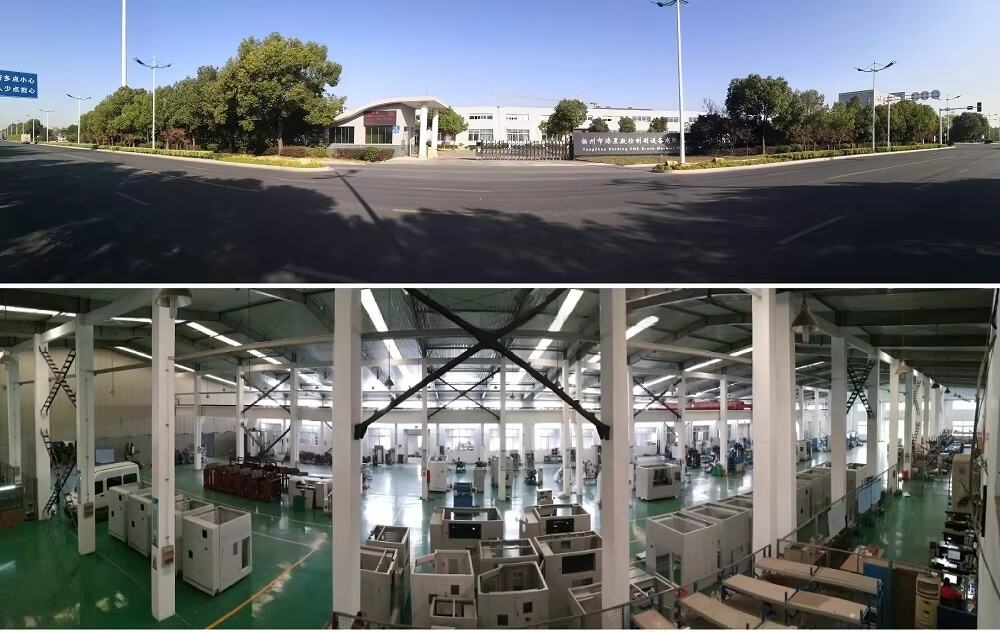

A: Our factory is located in Yangzhou city, Jiangsu province, China. It takes about 20 minutes from Yangzhou International Airport to our factory by car, and about 2 hours from Shanghai by train, and we will arrange our driver to pick you up at the airport or Yangzhou railway station anytime.
