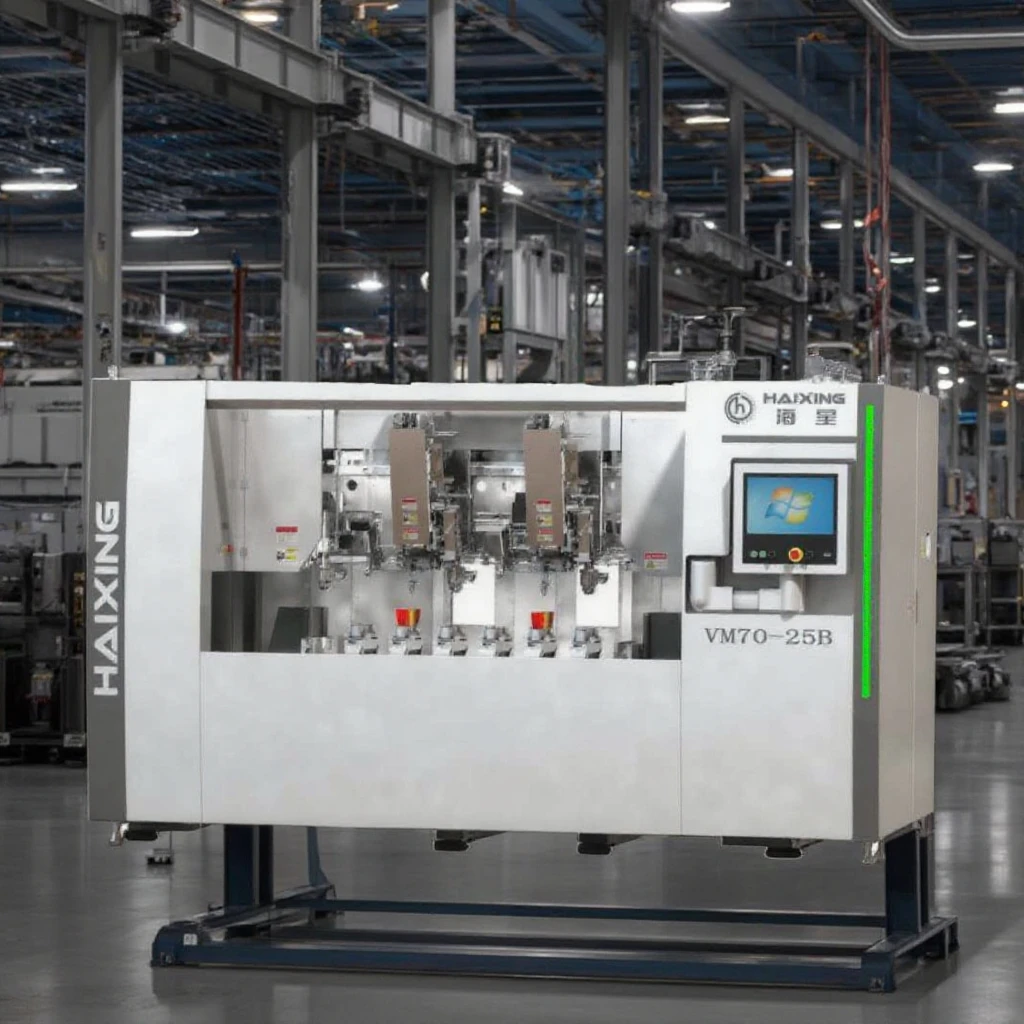

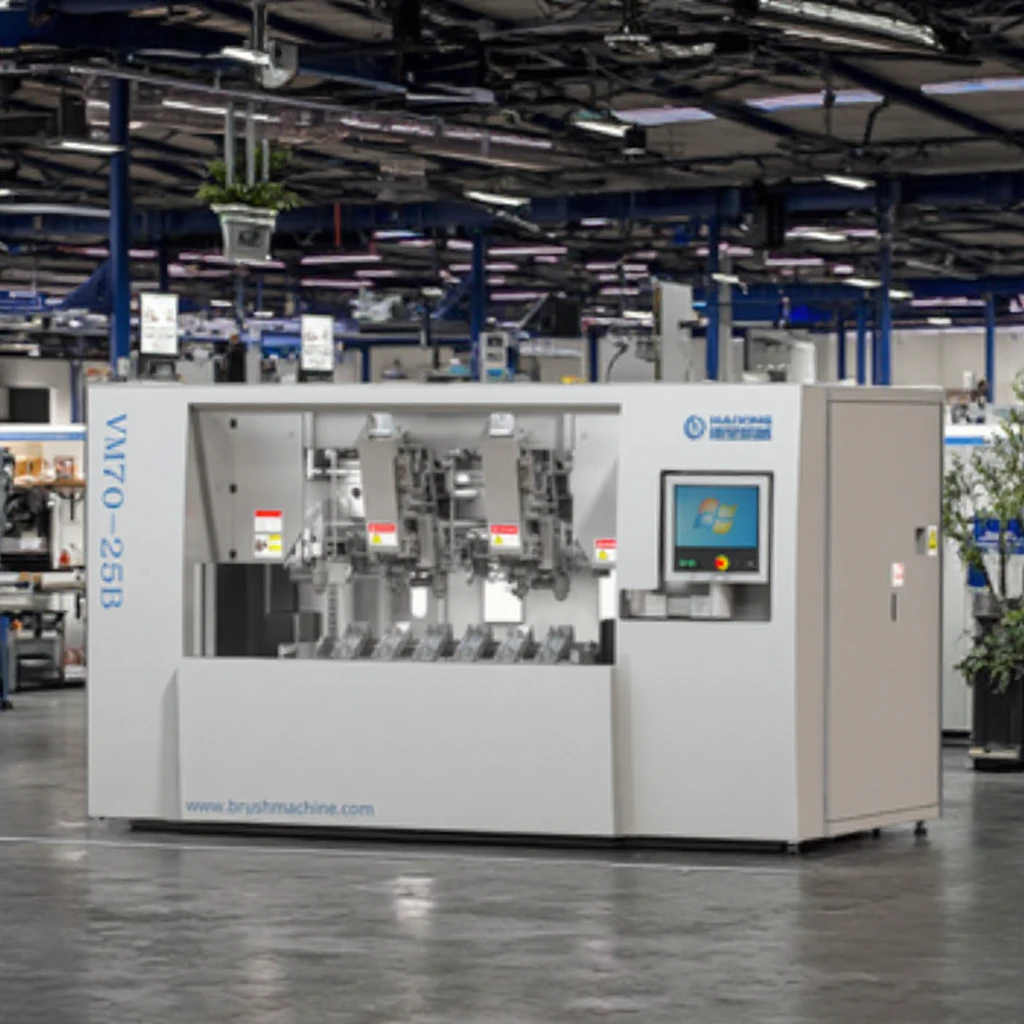

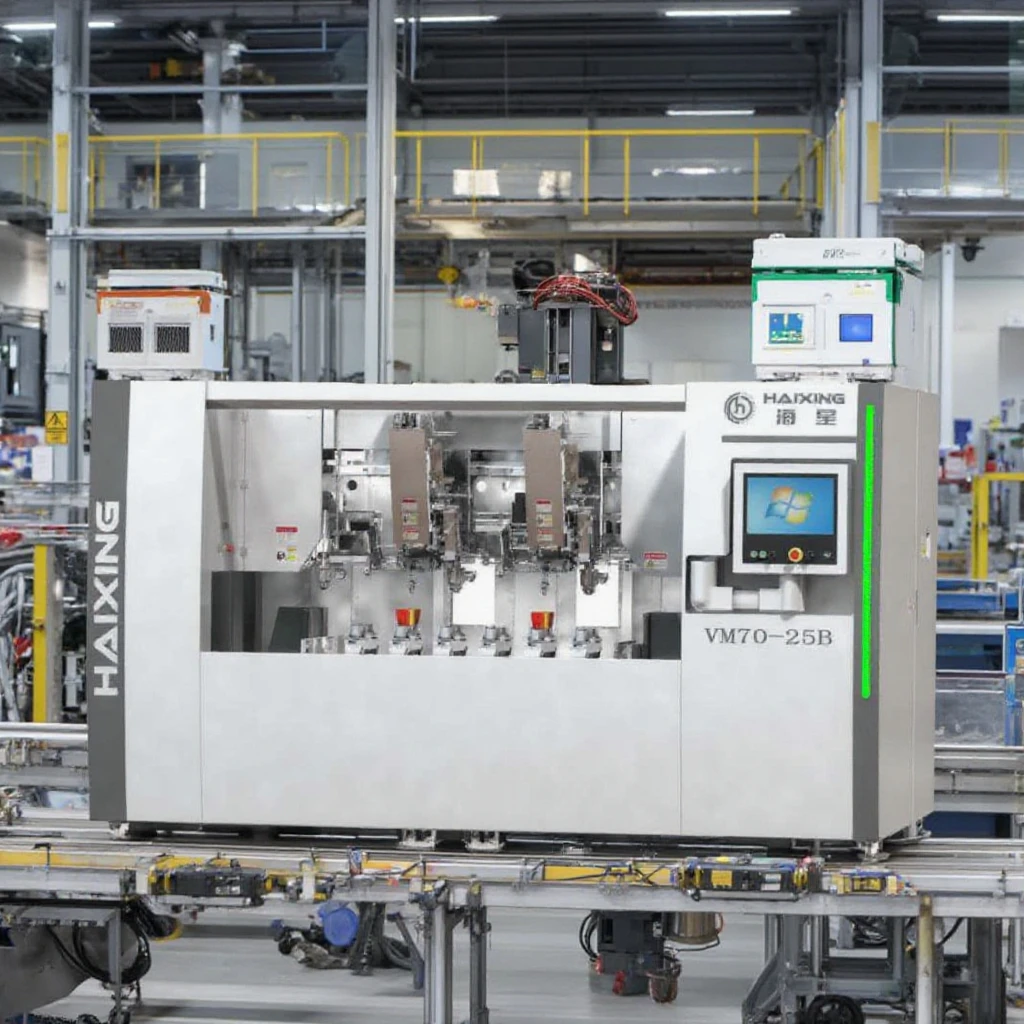

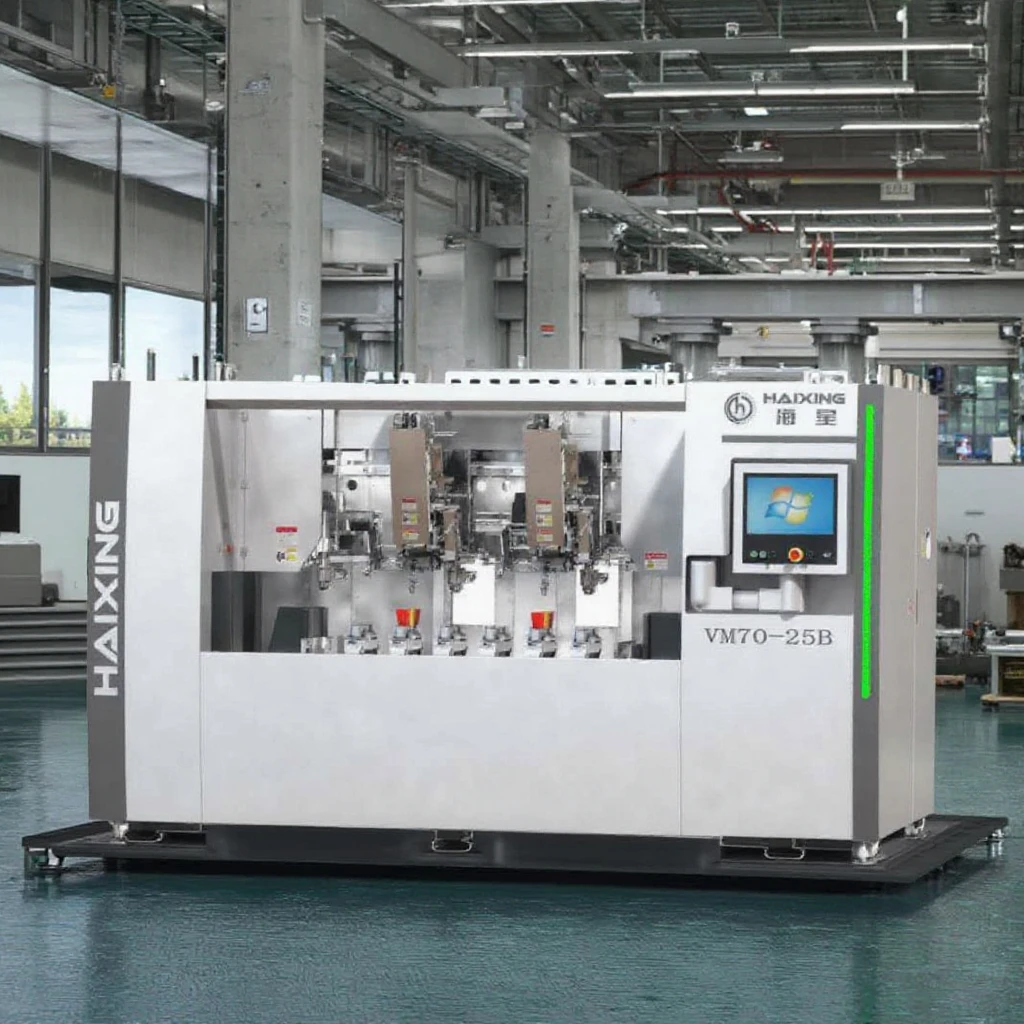

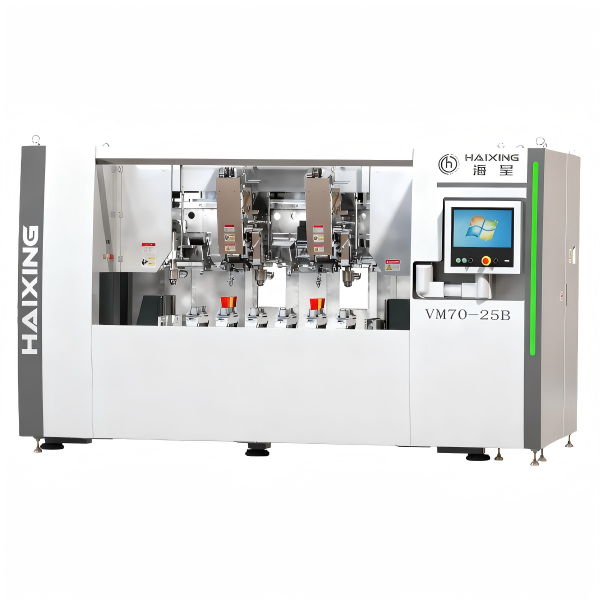

High-precision five-axis, five-head drilling and planting machine for Daily Brush Series, offering fully automatic, efficient, and reliable production.
Model VM70/120/150-25B features a uniquely innovative design, including multiple invention patents. One of these patents—the new tufting head technology combined with the new workstation—enables the machine to achieve ultra-high performance. It supports mass production of various products such as brooms, toilet brushes, and roller brushes, bringing greater benefits to users.
The human–machine touch screen control system is flexible and easy to operate.
Equipped with 3 drilling heads and 2 tufting heads, it can produce a wide variety of brushes.
Tufting method: flat wire or round wire.
Capable of pre-storing up to 1,000 brush programs, and creating new programs is also very simple.
The needles, bristle knives, and all machine components are standardized in design, making replacement and maintenance very convenient.
Can produce brushes in 2–3 colors.
Multiple platforms are available to produce brushes in different types and angles.
Optional platform types include:
● Platform capable of producing sloped or vertical bristle angles.
● Platform capable of producing spherical toilet brushes and hemispherical dish brushes.
● Platform capable of producing tubular industrial brushes.
|
Model |
VM70-25B |
VM120-25B |
VM150-25B |
|
Axis |
5 |
5 |
5 |
|
Tufting(pcs) |
2 |
2 |
2 |
|
Driling(pcs) |
3 |
3 |
3 |
|
processing method |
Continuous production |
Continuous production |
Continuous production |
|
Stroke(mm) |
70 |
120 |
150 |
|
Speed(tufts/min) |
≤900 |
≤760 |
≤600 |
|
Filament length(mm) |
50-240 |
50-360 |
50-400 |
|
Hole diameter(mm) |
3.0-8.0 |
3.0-8.0 |
3.0-8.0 |
|
Power consumption(KW) |
6.1 |
6.7 |
7.7 |
|
Air pressure(MPa) |
0.6~0.8 |
0.6~0.8 |
0.6~0.8 |
|
Weight(kg) |
3200 |
3240 |
4000 |
|
Dimensions(mm) |
3470x2450x2060 |
3520×2530×2160 |
3660x2680x2150 |
Q 1: Is your company a factory or trade company?
A: We are a factory, we are engaged in this business for more than 30 years, we also have our own trade company in charge of overseas & domestic marketing affairs.
Q 2:Do you have any certification?
A: SGS, CE, ISO, etc.
Q 3: Can you guarantee your quality?
A: Of course. We are a large scale professional factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely. We can make business by Trade Assurance on Alibaba,com.
Q 4: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that you prefer more convenient payment term such as T/T, L/C, Western Union,
etc.
Q 5: How about after-sales service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer spare parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q 6: How to reach our factory?
A: Our factory is located in Yangzhou city, Jiangsu province, China. It takes about 20 minutes from Yangzhou International Airport to our factory by car, and about 2 hours from Shanghai by train, and we will arrange our driver to pick you up at the airport or Yangzhou railway station anytime.
